What is the difference between AFFF 3% and AFFF 6%?

The Technical Definition of Percentage in AFFF Foam

In the context of fire suppression, the percentage (3% or 6%) refers to the proportion of foam concentrate that must be metered into the water stream to create the finished foam solution used to extinguish flammable liquid fires.

When a firefighting system is activated, a proportioner mixes the AFFF foam concentrate with water. For a 3% concentrate, the system is designed to pull 3 gallons of concentrate for every 97 gallons of water. This creates 100 gallons of "foam solution." Once this solution passes through an aspirating nozzle or discharge device, it mixes with air to create the "finished foam" that blankets the fuel.

The 6% variant requires double the amount of concentrate—6 gallons for every 94 gallons of water—to achieve the same volume of foam solution. While both types are designed to produce a film that floats atop hydrocarbons to cut off oxygen, the internal chemistry of the 3% version is more dense with active fluorosurfactants and stabilizers to ensure it performs correctly at a lower mixing ratio.

Historically, 6% was the industry standard due to older proportioning technology that found it easier to accurately meter larger volumes of liquid. However, as modern engineering has improved the precision of proportioning valves and bladder tanks, the industry has shifted toward the more efficient AFFF 3% foam concentrate to maximize the utility of every drop of stored agent.

Operational Differences: AFFF 3% vs AFFF 6%

The primary operational difference is the volume of concentrate consumed during a fire event, which directly dictates the duration of the firefighting operation based on the available storage tank size.

From a mechanical standpoint, a 3% system is more "efficient" because the storage tank lasts twice as long as a 6% system of the same size. If a fire truck carries a 500-gallon tank of AFFF 3% foam concentrate, it can produce roughly 16,666 gallons of foam solution. If that same truck carried 6% concentrate, it would only produce 8,333 gallons before running dry. This makes the 3% version the preferred choice for mobile units and remote locations where resupply is difficult.

Hardware calibration is the second major operational difference. Eductors, proportioners, and foam pumps are manufactured to specific percentages. You cannot simply swap a 6% concentrate into a system calibrated for 3%; doing so would result in a "lean" foam that is too watery and fails to form a stable vapor-sealing film. Conversely, putting 3% into a 6% system creates a "rich" foam that is overly thick, potentially clogging equipment and wasting expensive chemicals.

Furthermore, the viscosity of these concentrates can vary. While both are designed to flow readily, the higher concentration of active ingredients in AFFF 3% foam concentrate sometimes requires higher-quality pumps. However, for most modern industrial applications, the operational benefit of having more "firefighting power" in a smaller footprint outweighs the calibration requirements.

Economic and Logistic Impact of Choosing AFFF 3% Foam Concentrate

Choosing AFFF 3% foam concentrate provides a significant economic advantage by reducing shipping costs by 50% and requiring half the storage footprint compared to 6% concentrate.

Logistics play a massive role in the total cost of ownership for fire suppression systems. Because AFFF 3% foam concentrate is twice as potent, a facility only needs to purchase and ship 5,000 liters to do the same job as 10,000 liters of 6% foam. This leads to immediate savings in:

1. Shipping and Freight: Lower weight and volume mean fewer containers and lower transport fees, especially for international shipments.

2. Storage Infrastructure: A facility can use smaller bladder tanks or atmospheric storage tanks, saving valuable floor space in mechanical rooms or warehouses.

3. Handling Labor: Ground crews and maintenance personnel have 50% fewer drums or totes to move, inspect, and manage during routine safety audits.

From a long-term budgeting perspective, while the price per gallon of AFFF foam at 3% is higher than 6%, the "cost per gallon of finished foam" is typically lower or equal. When you factor in the reduced costs of the storage tanks and the piping infrastructure required to hold the agent, the 3% concentrate emerges as the more cost-effective solution for large-scale industrial projects.

Application Scenarios and Hardware Compatibility

The choice between 3% and 6% is often dictated by the specific fire risks involved and the existing infrastructure of the fire protection system, with 3% being favored for high-risk industrial sites.

Different environments demand different configurations of AFFF foam systems. In the aviation industry, where rapid response is critical and vehicle weight is a factor, AFFF 3% foam concentrate is almost universally preferred because it allows crash tenders to stay in the fight longer without returning to base for foam refills. In contrast, some older municipal fire departments or legacy fixed systems in older factories may still utilize 6% because their existing hardware (such as older balanced pressure proportioners) was specifically machined for that ratio.

Common Application Areas:

1. Petrochemical Refineries: Large storage tanks require massive amounts of foam; 3% reduces the size of the required foam stations.

2. Marine Vessels: On ships, space is at a premium. 3% concentrates allow for smaller storage lockers.

3. Airport ARFF Vehicles: Maximizing the "fire-per-pound" ratio is essential for aircraft rescue.

4. Offshore Platforms: The difficulty of transporting supplies via helicopter or supply ship makes 3% the logical choice.

When upgrading a facility, it is common to convert from 6% to 3%. This process involves recalibrating the proportioning equipment but results in a significant increase in the facility's firefighting endurance. Always ensure that the AFFF foam selected is compatible with the nozzles and monitors installed, as the expansion ratio can vary between different brands and concentrations.

Viscosity and Performance Metrics

Technically, both 3% and 6% concentrates are designed to meet the same fire knockdown standards, but the 3% version typically features a more complex chemical formulation to maintain stability at lower mixing ratios.

The performance of an AFFF foam is measured by its "knockdown time" (how fast it stops the flames) and its "burnback resistance" (how long it prevents the fire from reigniting). In laboratory testing, a high-quality AFFF 3% foam concentrate must produce an aqueous film that is just as strong as the film produced by a 6% solution. The film works by reducing the surface tension of the water to a point where it can actually float on top of lighter hydrocarbon fuels.

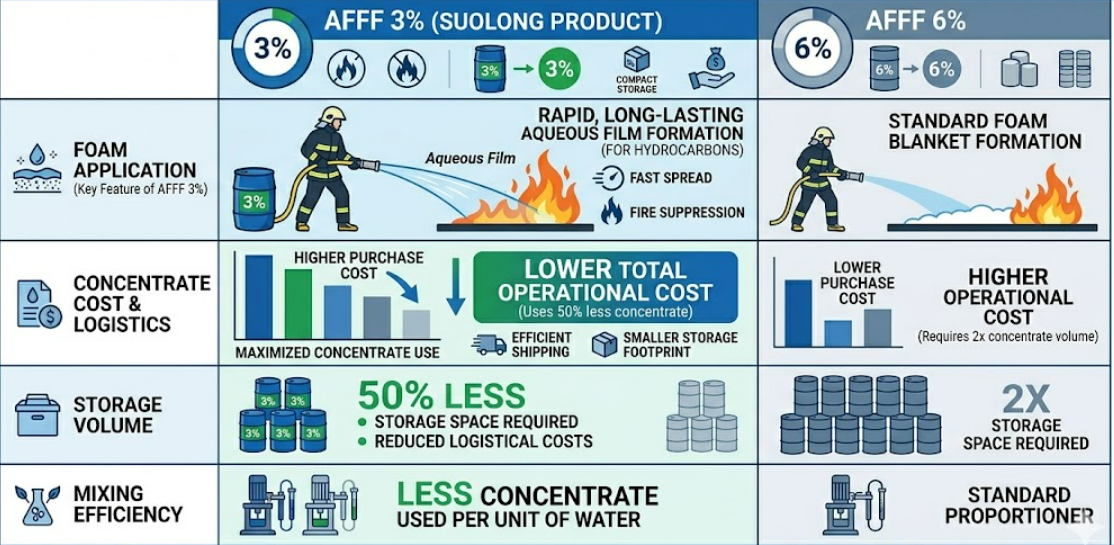

Comparison Table: Technical Specifications

Viscosity is another factor. Some AFFF 3% foam concentrate products are "pseudoplastic," meaning their viscosity decreases when they are agitated or pumped. This ensures that even though the concentrate is "thicker" in the drum, it flows perfectly through the induction system during an emergency. Modern 3% concentrates are engineered to have excellent cold-weather flow characteristics, ensuring reliability in diverse climates.

Storage and Maintenance Requirements

Maintaining AFFF foam requires regular testing and climate-controlled storage to ensure that the concentrate does not degrade over its 10 to 20-year shelf life.

Regardless of the concentration, AFFF foam must be stored in original containers or approved stainless steel/high-density polyethylene (HDPE) tanks. For AFFF 3% foam concentrate, the importance of sealing the tank is magnified; because the solution is more concentrated, any evaporation of the water content within the concentrate can lead to crystallization or changes in the induction rate.

1. Temperature Control: Foam should ideally be stored between 35°F and 120°F (1.7°C to 49°C) to prevent freezing or accelerated aging.

2. Annual Testing: NFPA standards require annual laboratory analysis of the foam to check for pH levels, refractive index, and expansion ratios.

3. Contamination Prevention: Mixing different brands of 3% or 6% concentrates can lead to chemical reactions that gel the liquid, rendering the system useless.

Properly maintained AFFF 3% foam concentrate can remain effective for two decades. Because you are storing a smaller volume of the 3% variant, the cost of these annual "health checks" and the eventual disposal costs (when the foam reaches the end of its life) are significantly lower. This long-term maintenance efficiency is why most new fire protection specifications call for 3% concentrates as the baseline standard.
